Computerised TFO Twister
Characteristics
Change of Technical Structure in Traverse CAM
Even winding type by the fixed distance of traverse feeding, Iengthning the life of CAM by lower tension of traverse spring.
Lower-Noise Spindle
• Making the noise against air minimize by the desing of spindle
• Exact concentric degree and lengthening of life of spindle by the non-bolt type
More Easier Operation of Gearbox
• Attachment of the automatic oil suply device
• Management of tools and prevention of loos of spare gear
• Maintenance of clear gear box and lengthenance of life of gear
TPrecise Spindle speed
Both spindle and bolster are precisely processd by our own equipments with high performance, and then go through the strict quality in spection procedures, so that they can remarkably performance even at high speed.
Lass Noise and Improved Durability
Not only is the bolster specially designed for precise processing to minmize its noise, but also durability is remarkably improved by guaranteeing less vibration on the basis of strict analysis on mechanical vibration.
Convenient Work ability
The height of this machine is best suited for convenient workability, the loading and unloading of cylinder are simple, and a new type of cradle is applied to be available for reduction of working time.
| No. of Spindle : 70 U | 07 | 08 | 09 |
10 | 11 |
| No. of Section : 90 U | 280 | 320 | 360 | 400 | 440 |
| No. of Section | 224 | 256 | 288 |
320 | 352 |
| Machine length (Mtr.) | 14.6 | 16.4 | 18.2 | 20 | 21.8 |
| Machine width | 750 mm | ||||
| Computerised TFO Twister TECHNICAL SPECIFICATION | |||||
|---|---|---|---|---|---|
| MODEL | ATE9OU / ATE90B / ATE7OU | ||||
| Frame | Double deck on both sides | ||||

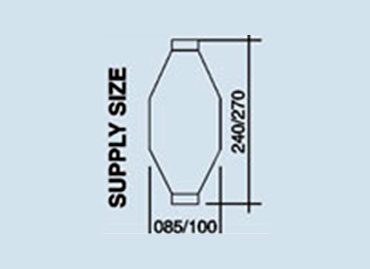

| Supply package | Nylon or polyester pirn 100~85 mm dia *270~240 mm long | ||||

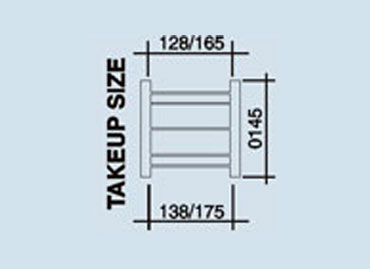

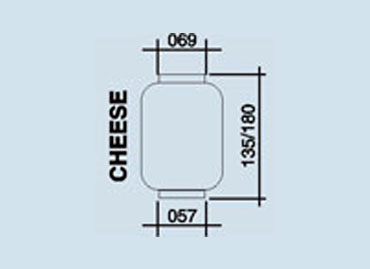

| Take-up package | Cylinder and cheese | ||||
| Take-up capacity(max) | 1000grm./ 750gr | ||||
| Denier Range | 30-300d | ||||
| Yarn | Filament | ||||
| Dribe | Motor 7.5kw,4p*2 set Star delta slow start device S & Z twists switchable | ||||
| Spindle speed | 7,000-18,000 r.p.m. | ||||
| Motor pulley | 3 pcs. For 10,000, 12,000 & 14,000 r.p.m As the standard supply | ||||
| Twist range | 400-4,000T/M yarn speed shall be set at Max. 50 mtr/min | ||||
| Spindle belt | Endless belt with nylon core | ||||
| Tension | Ball tension device | ||||
| Feed roller | V-groove plate made of M.S. Hard Chrome/Ceramics | ||||
| Package form | Central G-Box | ||||
| Take-up package | Spindle less cradle type | ||||
| Attachments |
|
||||
