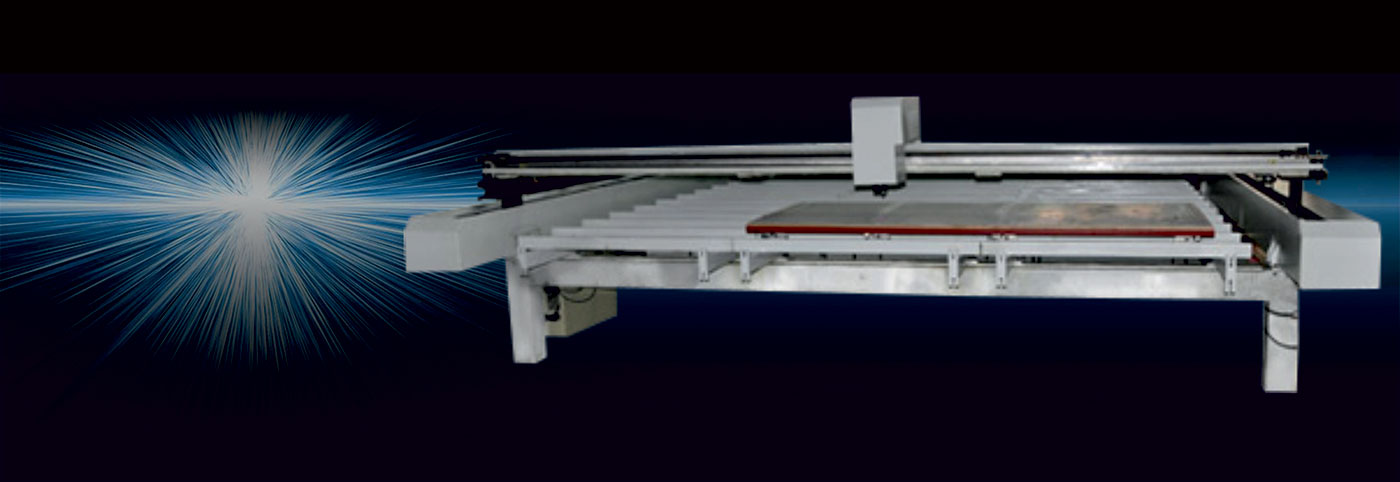

| Flat UV Engraver TECHNICAL SPECIFICATION |
| Mode: |
FUV2025 |
FUV3234 |
| Imaging System: |
48 channel discrete 405 nm laser diode |
| Resolution: |
720-2540dpi |
| Engraving speed: |
≈10min./m |
| Repeatablity: |
0.02mm Continuous exposure for two times At 25º and 60% relative humidity |
| Interface: |
USB2.0 |
| Emulsion: |
Ordinary emulsion |
| Image size: |
2000*250(mm) |
3200*3400(mm) |
| Screen length: |
2*2.5(m) |
3.2*3.4(m) |
| File type: |
bmp, tif |
| Power: |
220v-50hz-2kv |
| Environment: |
Recommended: 21-25ºC,18-26ºC, relative humidity 40-70%, dust-free, constant temperature |
| Size/Weight: |
4000*2500*1500mm/1200kg (Package) |
4500*4000*1500mm/1500kg (Package) |
